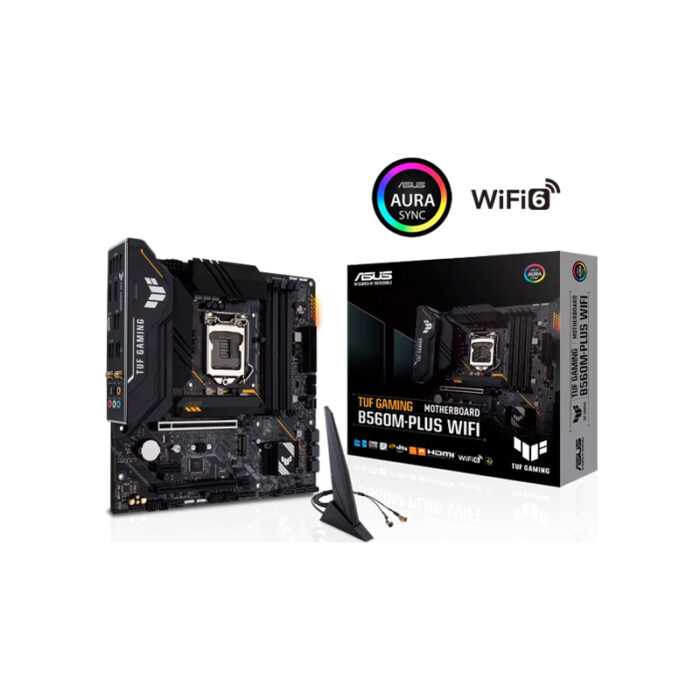

ASUS TUF B560M-PLUS WIFI

03 YERAS WARRANTY



PRODUCT SPECIFICATIONS



ASUS TUF B560M-PLUS WIFI



CPU :



Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

Supports Intel® 14 nm CPU

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

Refer to www.asus.com for CPU support list.

Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.



Chipset : B560



Memory :

DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)



OptiMem II :



10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.

11th Gen Intel® processors support 3200/2933/2800/2666/2400/2133 natively.

Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.



Graphics :



1 x HDMI 2.0

1 x DisplayPort 1.4**

1 x HDMI™ 1.4 / 2.0***

Graphics specifications may vary between CPU types.

Intel® 11th & 10th Gen processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates.

Only Intel® 11th Gen processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any updates.





Expansion Slots :



1 x PCIe 4.0/3.0 x16 + 1 x PCIe 3.0 x16 (max. x4)

Intel® 11th &10th Gen Processors

1 x PCIe 4.0/3.0 x16 slot(s)*

– Intel® 11th Gen processors support PCIe 4.0 x16

– Intel®10th Gen processors support PCIe 3.0 x16

Intel® B560 Chipset

1 x PCIe 3.0 x16 slot (supports x4 mode)

1 x PCIe 3.0 x1 slots





Storage :



Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports

Intel®11th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280

– Only Intel® 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs

Intel® B560 Chipset

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)*

6 x SATA 6Gb/s ports

To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology.

M.2_2 slot shares bandwidth with SATA_2.When M.2_2 slot is operating in SATA mode, SATA_2 will be disabled.



Wireless & Bluetooth :



Intel® Wi-Fi 6

2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

Supports 2.4/5GHz frequency band

Bluetooth v5.0 or later

Wi-Fi 6

2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

Supports 2.4/5GHz frequency band

Bluetooth v5.2



USB :



Rear USB:Total 9 ports

2 x USB 3.2 Gen 2 port(s) (2 x Type-A)

3 x USB 3.2 Gen 1 port(s) (2 x Type-A+ 1 x USB Type-C®)

4 x USB 2.0 port(s) (4 x Type-A)

1 x USB 3.2 Gen Gen 1 connector(s) (support(s) USB Type-C®)

1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports



Audio :



– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

– Supports up to 24-Bit/192 kHz playback



Audio Features :

– Audio Shielding

– Rear optical S/PDIF out port

– Premium Japanese audio capacitors

– Dedicated audio PCB layers



Back Panel I/O Ports :



2 x USB 3.2 Gen 2 port(s) (2 x Type-A)

3 x USB 3.2 Gen 1 port(s) (2 x Type-A, 1 x USB Type-C®)

4 x USB 2.0 port(s) (4 x Type-A)

1 x DisplayPort

1 x HDMI™ port

1 x ASUS Wi-Fi Module

1 x Realtek 2.5Gb Ethernet port

5 x Audio jacks

1 x Optical S/PDIF out port



Intrernal I/O Connectors :



1 x TB Header (for add-on TB card)

Fan and Cooling related

1 x 4-pin CPU Fan header(s)

1 x 4-pin CPU OPT Fan header(s)

2 x 4-pin Chassis Fan header(s)



Power related :



1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector



Storage related :



2 x M.2 slots (Key M)

6 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 connector (support(s) USB Type-C®)

1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports



Miscellaneous :



2 x AURA Addressable Gen 2 header(s)

2 x AURA RGB header(s)

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thunderbolt™ header



Special Features :



ASUS TUF PROTECTION :



– Digital power design with DrMOS

– Enhanced DRAM Overcurrent Protection

– ESD Guards

– TUF LANGuard

– Overvoltage Protection

– SafeSlot Core+

– Stainless-Steel Back I/O



ASUS Q-Design :



– M.2 Q-Latch

– Q-DIMM

– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

– Q-Slot



ASUS Thermal Solution :



– Flexible M.2 heatsink

– VRM heatsink design



ASUS EZ DIY :



– ProCool

– Pre-mounted I/O shield



AURA Sync :



– AURA RGB header(s)

– Addressable Gen 2 RGB header(s)



Software Features :

ASUS Exclusive Software



Armoury Crate :



– AURA Creator

– AURA Sync

– Two-Way AI Noise Cancelation



AI Suite 3 :

– Performance And Power Saving Utility

TurboV EVO

EPU

Digi+ VRM

Fan Xpert 2+

– EZ update

TUF GAMING CPU-Z



AI Charger :

ASUS Turbo LAN

DAEMON Tools

DTS Custom for GAMING Headsets

MyAsus

Norton Anti-virus software (Free Trial version)

WinRAR

UEFI BIOS



ASUS EZ DIY :

– ASUS CrashFree BIOS 3

– ASUS EZ Flash 3

– ASUS UEFI BIOS EZ Mode



BIOS :

128 Mb Flash ROM, UEFI AMI BIOS



Manageability :

WOL by PME, PXE



Accessories :



Cables :

2 x SATA 6Gb/s cables

Miscellaneous

1 x ASUS Wi-Fi moving antennas

1 x M.2 Rubber Package(s)

1 x M.2 SSD screw package(s)

1 x TUF Gaming sticker



Installation Media :

1 x Support DVD



Documentation :

1 x TUF Certification card

1 x User manual
